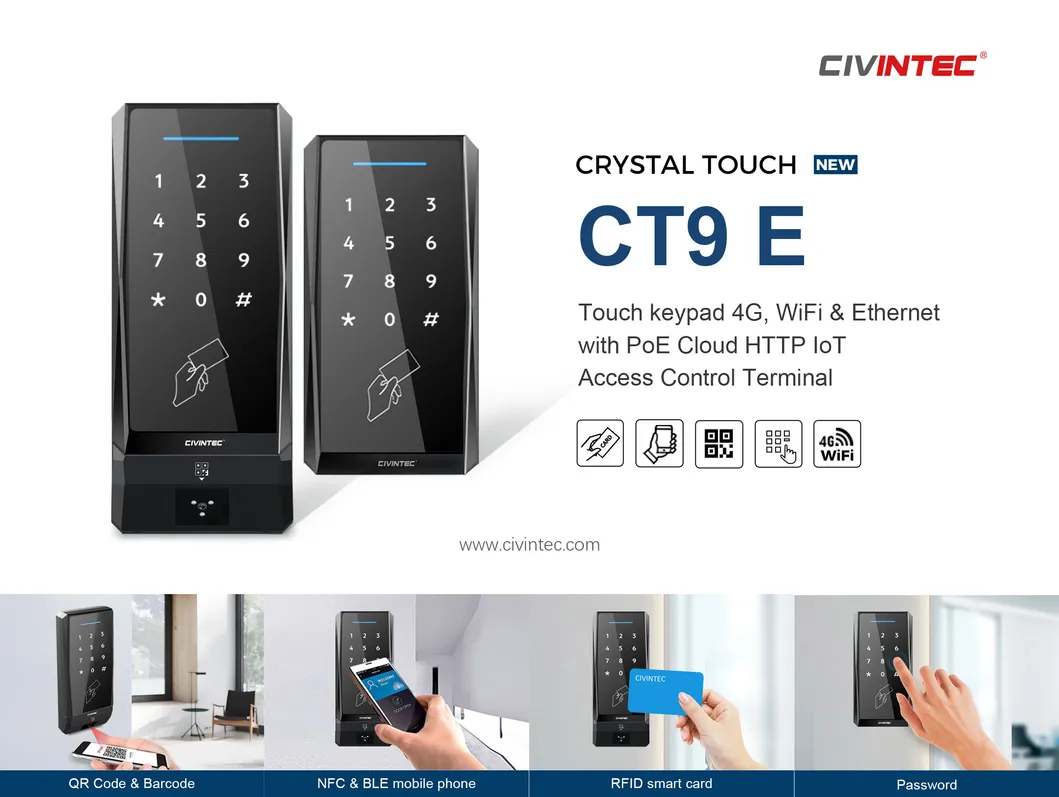

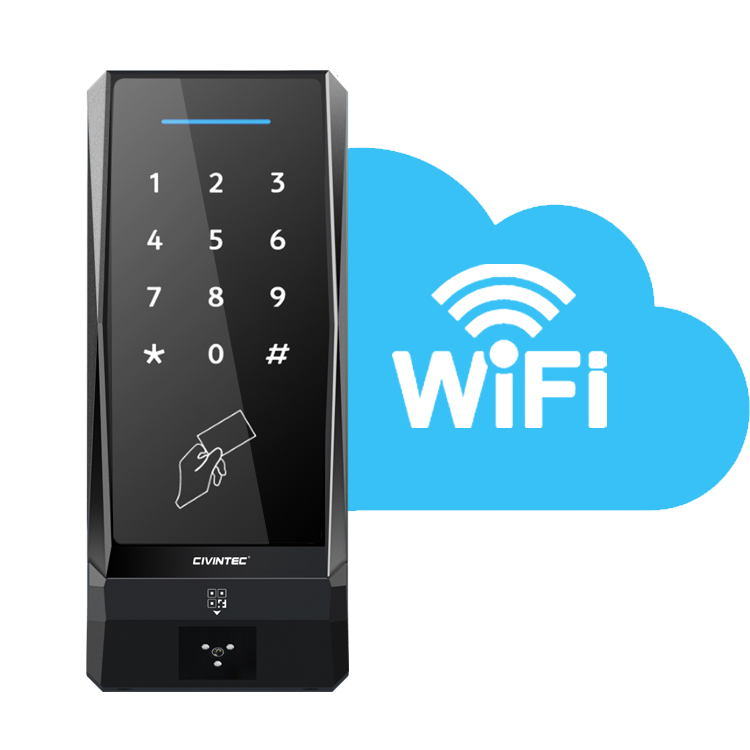

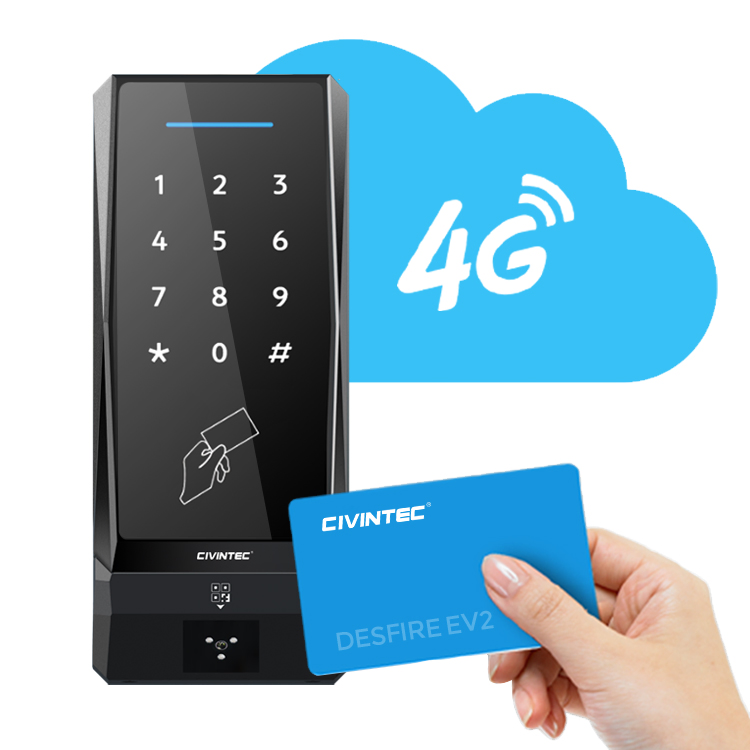

CT9 E is Linux based HTTP/HTTPs server centralized terminal with wireless WiFi, 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
HTTP Server Centralized Access Control & IOT System
RFID / QR CODE / Mobile id Reader | Touch Keypad Reader
Embedded LINUX OS & SDK
+
Embedded WIFI, 4G & TCP/IP Ethernet HTTP/HTTPs
Embedded Relay Control for Lock & Facility Control
| CT9 E SPECIFICATIONS | |
|---|---|
| IDENTIFICATION TECHNOLOGIES | |
| RFID Contactless Cards | 125KHz PROx, 125KHz EM; 13.56MHz Mifare Classic, Ultralight, Plus, DESFire EV1/EV2/EV3, NFC tags |
| Mobile Credential | BLE (2.4Ghz), NFC |

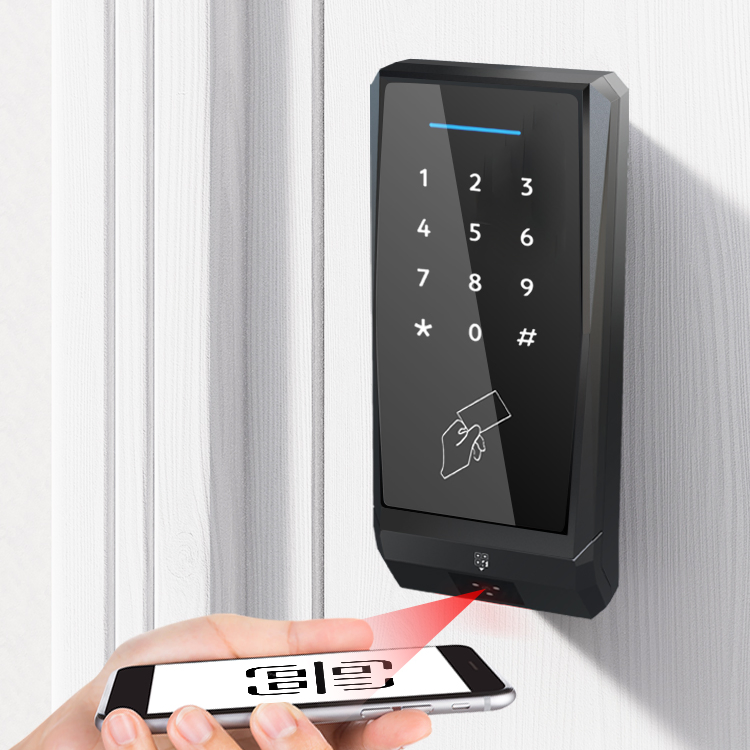

| Barcode / QR scanner | 1D & 2D QR Code, Micro QR code, PDF417, Code 128, Code 39 and barcodes |
| INTERFACE | |
| Communication | TCP/IP(RJ45), 4G, WiFi 2.4GHz, RS485, Wiegand input |
| I/O Port | Door contact, Exit, Buzzer, Fire alarm, Tamper switch, 1~2 relay outputs |
| GENERAL | |
| Operating System | LINUX |

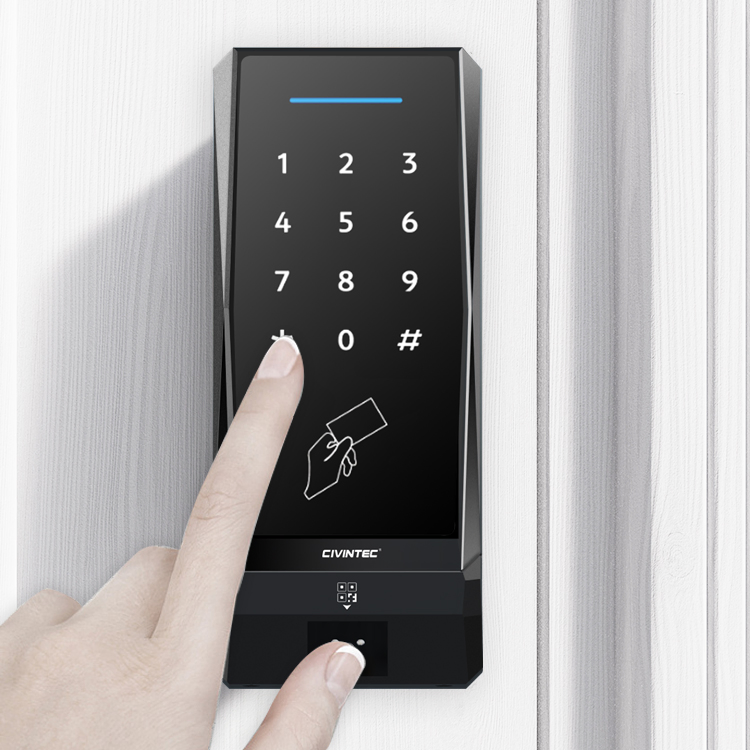

| Keypad | 12 digit Touch keypad with backlit |
| Storage | 10,000 users / 50,000 logs (more on request) |
| Protection Class | IP65 electric epoxy potted, UV resistant |

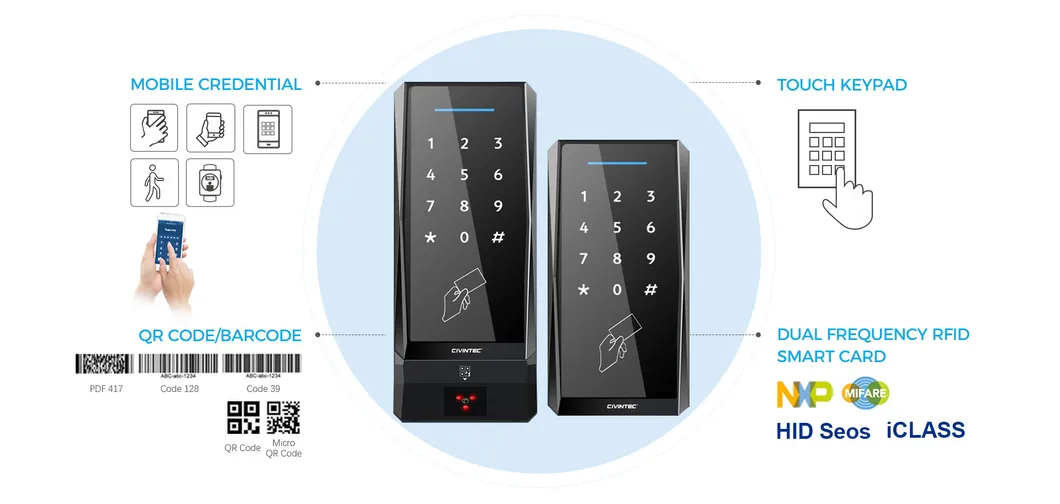

💡 Multiple Access Credential: 5-in-1 technologies including touch keypad, dual RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning.

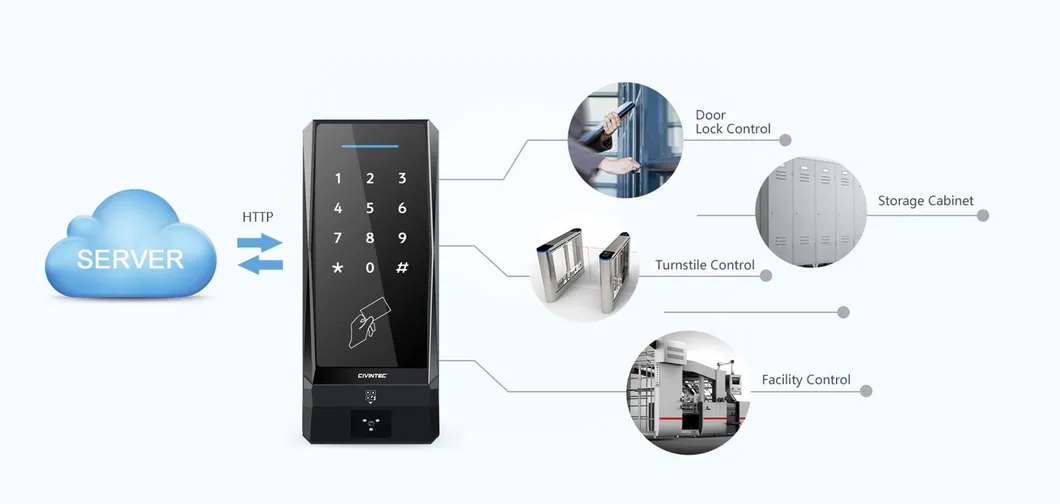

☁️ Cloud Server Remote Control: Bio-direction communication via standard HTTP & HTTPs for remote door lock and IoT facility management.

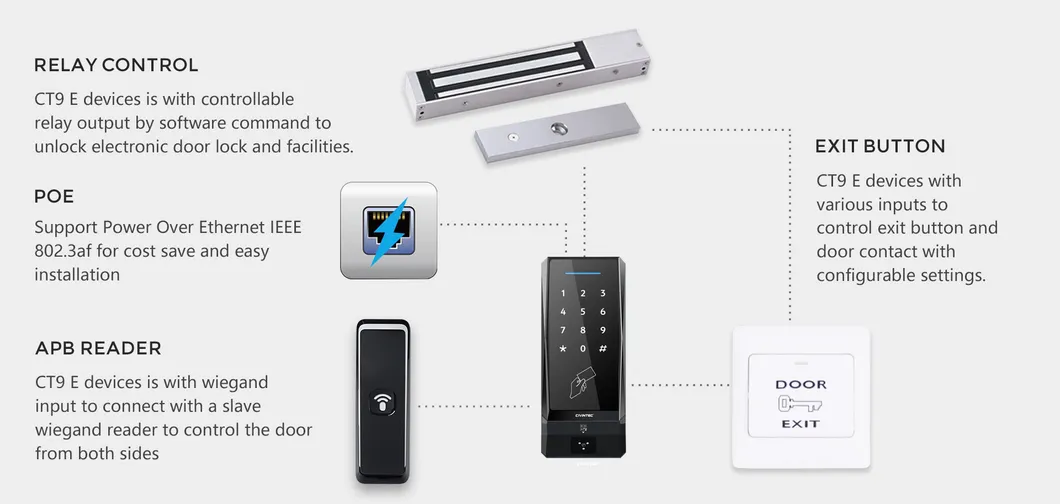

🛠️ Multiple Application Solutions: Embedded relay output to control door locks for Access Denied or Access Granted scenarios and custom IoT solutions.

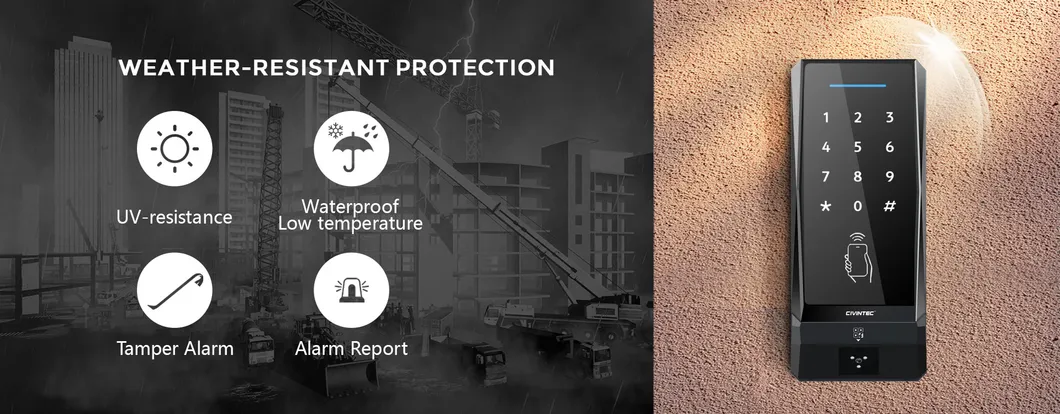

☔ Weather-Resistant Protection: IP65 ratings ensure durability against rain, dust, and strong sunlight, suitable for outdoor and rugged environments.
We offer ODM customization on hardware, housing, firmware, and software. Users can program and display their own logo on the 3.5" touch screen. OEM logo printing on the reader body is also available.
